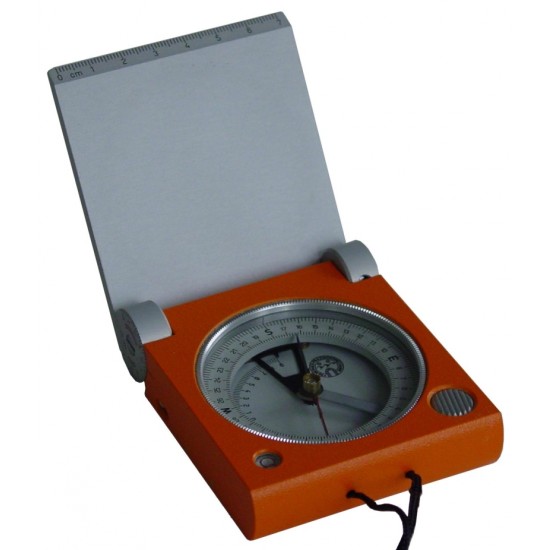

Geological Compass Freiberg

Geological Compass Freiberg Geko. AVAILABLE ON REQUEST (APPROX. 20 DAYS TO DELIVERΥ). Also availiable with engraved hub (vertical circle) adding 60 euros to the total price (Please see photo).

Proven and practice-orientated
► sapphire balanced
► Ground magnetic needle placed on edge
► Lockable magnetic system
► Easy adjustment of graduated circle
► Lockable inclinometer guarantees for inclination measurements of high accuracy
► Circular spirit level for levelling
► Lateral glass tube for measurement at points of difficult access
► Declination and inclination can be easily set to relevant local values

Compass circle
diameter 45 mm
scale value 2° (2 gon)
estimation 0.5° (0.5 gon)
Vertical circle
scale value 5° (5 gon)
estimation 1° (1 gon)
Clinometer
measuring range + 90° (+ 100 gon)
scale value 2° (2 gon)
estimation 0.5° (0.5 gon)
Contact edge
graduated length 70 mm
scale value 1 mm
declination setting optional
tilting range of the dip measuring
plate 225° (250 gon)
circular level approx. 40´
tubular level approx. 60´
Dimensions
Compass 93 x 76 x 22 mm
104 x 91 x 45 mm
Weight
0.28 kg
with leather case
